Quick Details

  • Processing: Mixer
  • Condition: New
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: Reliable Beverage Mixing Machine
  • Model Number: QHS-1500 Beverage Mixing Machine
  • Processing Types: Carbonated Beverage
  • Voltage: 220~480V
  • Power(W): 1.5KW
  • Weight: 600KGS
  • Dimension(L*W*H): 1000*800*2000
  • Certification: CE , ISO , SGS , TUV
  • Warranty: One year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Name: High Automatic Beverage Mixing Machine Controlled By PLC
  • Capacity: 1000~5000kg/h
  • Processing type: Carbonated beverage
  • Mixng producion scale: 3:1 ~ 6:1
  • Content of CO2: 2.5 ~3.5
  • Mix temperature: < 5 ℃
  • Power consumption: 1.5 ~ 5KW
  • Control: SIEMENS PLC
  • Material: SS304/316
  • HS Code: 8422301090

Packaging & Delivery

Packaging Details High QUANTITY Automatic Beverage Mixing Machine Controlled By PLC
Export standard waterproof wooden case
Delivery Time 15 working days after payment
CO2 Mixing Machine

High Automatic Beverage Mixing Machine Controlled By SIEMENSPLC

Beverage Mixing Machine is applied for carbonation and proportion mixing of various gas beverages (water, syrup, and CO2), such as lemon and Cola. It is the main equipment among the complete equipment of beverage production line (especially the key equipment producing middle-and top-level beverage).

Features --- Beverage Mixing Machine :

Beverage Mixing Machine , after the adoption of advanced technologies in the chemical industry—static mixer (carbonizer), features large area of gas/liquid mass transfer, small resistance loss, high efficiency, low energy consumption, and simple structure. It also adopts the multi-stage centrifugal pump with reliable performance and low noise, guaranteeing the performance of the whole machine.

The mixing proportion is accurate and easy for adjustment. With no need of parts replacement, Syrup water CO2 drink mixer can realize the quick output adjustment and the proportion of syrup and water.

Beverage Mixing Machine  , by use of CO2 reflux deoxidation, not only saves CO2, but also achieves the objective of deoxidation and makes the deoxidation water have better pre-carbonation effects.

Beverage Mixing Machine is convenient to adjust the gas content. According to the requirements of beverage gas content, the adjustment can be done through proper operation.

Beverage Mixing Machine has perfect automatic control system, featured by coordinate action, simple structure, continuous production, and high automation.



Technical Parameters

Automatic Beverage Mixing Machine

ModelQHS-1500QHS-2500QHS-3500QHS-5500
Production Capacity (kg/h)1000~15002000~25003000~35005000~5500
Mixing Production scale(water:sugar)3:1 ~ 6:13:1 ~ 6:13:1 ~ 6:13:1 ~ 6:1
Content of carbon Dioxide2.5 ~ 3.52.5 ~ 3.52.5 ~ 3.52.5 ~ 3.5
Mixing Temperature °C<5<5 <5 <5
Power Consumption (KW)1.52.97 3.05.0
Overall size (mm)1000*800*20001500*1000*19001700*1000*22002000*1500*3000

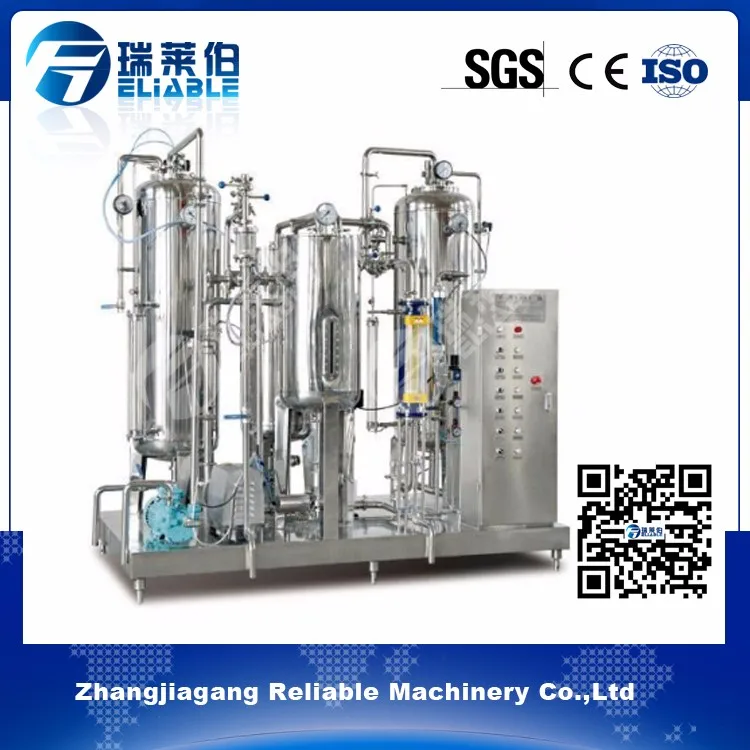

Carbonator Machine Photo

Reliable Machinery Workshop



Reliable Machinery Exhibition



Packing and Delivery

Reliable Machinery Clients

Reliable Machinery Services

The sample service

1.we can send you the video of the running machine.
2.you are always welcome to come to visit our factory, and you may see the operation of the machines here . We will make the arrangement to pick you up when you come .
3.If we get the permission of the customer who has brought the machines from us ,we can tell you their contact information, you can go to visit their factory.

Customized service
1.we can design the machines according your requirements(material ,power,filling type,the kinds of the bottles, and so on).
2.at the same time we will give you our professional suggestion .

After-sales service
1.we will provide the bill of load on time to make sure you can get the machine quickly
2.when you finish the Preparation conditions ,our engineer will go to your factory for the installation, testing and also training .
3.we provide one year warranty with spare parts free.
