Quick Details

  • Type: Filling Machine
  • Condition: New
  • Application: Beverage, Food, Carbonated Drink / Sparkling Drink / Soda
  • Packaging Type: Barrel, Bottles
  • Packaging Material: Glass, Metal
  • Automatic Grade: Automatic
  • Driven Type: Electric
  • Voltage: 380V
  • Power: 4KW
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: Reliable Machinery
  • Model Number: CGFD-C24-24-8 Glass Bottle Filling Machine
  • Dimension(L*W*H): 2650*1900 *2400mm
  • Weight: 3.0T
  • Certification: CE ISO SGS
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: Automatic Glass Bottle Carbonated Sparkling Drink Filling Machine
  • Machine Function: Rinsing Filling Capping
  • Filling speed: 3000 ~ 6000 bottles/hour
  • Bottle volume: 200~1500ml
  • Bottle cap: Crown Cap , Aluminum Cap, Ring Pull Cap
  • Control system: SIEMENS PLC + Touch Screen
  • Machine material: Food Stage SUS304 /316
  • Warranty: Two Year Guarantee
  • Keywords: Carbonated Sparkling Drink Filling Machine

Packaging & Delivery

Packaging Details 6000BPH Automatic Glass Bottle Carbonated Sparkling Drink Filling Machine with Crown Cap , Aluminum Cap, Ring Pull Cap
The normal packages is wooden box. If export to Europe Country, the wooden box will be after fumigated. If enter container the packages is too tighter, we may use PE film to wrapping the machine. or according customer special request.
Delivery Time Shipped in 30 days after payment

Automatic Glass Bottle Filling Machine Carbonated Drink Filling Machine



Product Description



This monobloc machine is quite easy to be operated and maintained with the adopting of SIEMENS PLC control of frequency conversion Timing.
All the parts contact with liquid are made up of high quality stainless steel 304 , both exterior and interior of the machine are polished for easily cleaning and good hygiene codition. The sealing parts are all imported from foreign countries, which meets the requirement of the hygiene of the foodsafety.
Rinsing parts
Rotatory bottle-rinsing machine has the functions of not opening the valve and rinsing without bottle, which is working from bottle entrance, bottle transportation, bottle clipping, bottle turning around with synchronously rinsing inside of the bottle to water-dropping and exit have the functions of not opening the valve and rinsing without bottles.

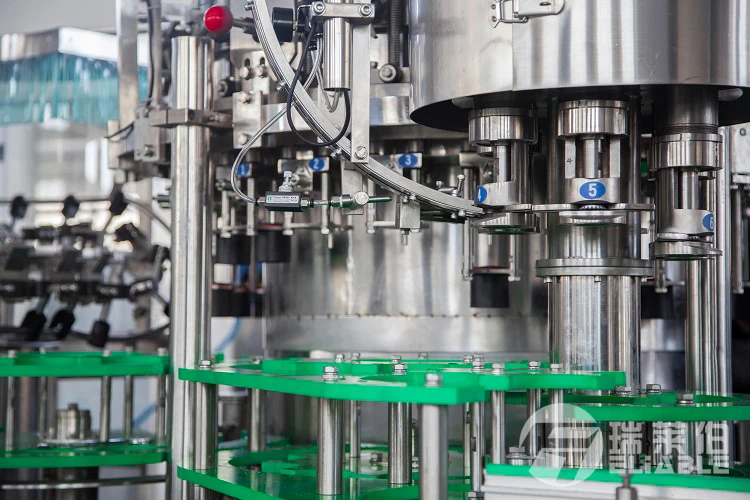

Filling Parts

1.       The rotate plate is made of stainless steel 304, large flat toothed bearing.

2.       The pressure mechanical valve is introduced the advanced foreign design with a fast filling speed, no hygiene corner pocket, a few sealing parts, and precise liquid level control. The whole valve is made of food grade stainless steel.

3.       The beverage supply adopts the automatic pneumatic valve magnetic liquid-level switch to control the liquid tank automatically.

4.       Sliding bearing is anti-corrosion non-maintaining bearing, which can reduce the pollution of filling to the environment. Rolling bearing made of stainless steel, the sealing ring is made of EPDM material, plastics is made of UMPE.

5.       The motivation of the filler is derived from the driven system in the framework and passed by gear.

6.       The main drive adopts gear drive, with high efficiency, low noise, long life, easy maintenance, sufficient lubrication, grease can lubricate centralizing automatically, adopts transducer to the speed of main motor to control, the machine adopts step-less frequency conversion timing. The material for the whole platform and frame is carbon steel with stainless steel outside.

7.       The machine is automatically controlled by PLC, fault on line display, like bottle block, cap shortage etc.

8.       The key parts and electric elements of the machine are adopting famous brand products.



Capping Part

This unit is the highest degree of accuracy of 3-in-1 machine, it is important for the machine to run stably and the product quality.

It is suitable for aluminum screw cap on standard glass bottles. It is provided with a hopper to feed caps on to neck of bottles. No bottle-no capping. It is provided with a self-releasing clutch mechanism to tighten the caps uniformly to a pre-set torque. It is provided with attachments suitable for any one size of bottle.



Technical Parameters

Model

CGFD-C

18-18-6

CGFD-C

24-24-8

CGFD-C

32-32-10

CGFD-C

40-40-12

CGFD-C

50-50-15

Washing No

18

24

32

40

50

Filling No

18

24

32

40

50

Capping No

6

8

10

12

15

Production

Capacity(500ml)

3000~5000

5000~7000

7000~9000



9000~12000

12000~15000

Install Capacity

(KW)

4

4.8

7.6

8.3

9.6

Overall size

2650×1900

×2400

2900×2100

×2400

4100×2400

×2400

4550×2650

×2400

5450×3210

×2400



Contact Us





Company Information

Zhangjiagang Reliable Machinery Co., Ltd is a hi-tech designing and manufacturing enterprise, which is specialized in beverage production and packing complete lines, as well as various water filling machine . As one of the earliest companies engaged in manufacturing liquid filling and packing equipment in China Our products include:

RELIABLE supply and manufacture the followings machines for you

1) Water treatment equipment --- RO purified equipment, UF purified equipment, Sand filter, Carbon filter, Water softner, Sea Water treatment.

2) Filling Machine---3 in 1 Washing filling capping---for your water,cabonated drink,

juice,wine,vinegar, milk,tea and so on.

----150 to 2000ml bottle, 3.5-10L,11- 20L bottle (3-6gallon bottle)

---  PET bottle, Glass bottle, PP bottle and Can

---- Screw cap, Aluminum cap, Grown cap and three (four) twist caps etc.

3) Labeling Machine---Stick label, Shrink sleeve label, Hot melt Opp labels. Wet gule label

4) Printer , Manual code printer , Inkjet printer , Laser printer

5) Packing Machine----Shrink film, Cartons packing machine

6) Bottle Blowing Machine--- for making plastic bottle

7) Injection Molding Machine---for your cap and proform.

8) Subsidiary products for drink production---Bottle Washer, Bottle Capper, Conveyor, Bottle Dryer, Bottle Warmer, Bottle Loading system, Bottle unscrambler, CIP system, Bottle Cooler, Bottle Sterilizer, Blending tank, Storage Tank, Sugar Melting Pot, Syrup Filter Conveyor and so on.

RELIABLE will supply you bottle design, label design, workshop design free and make turnkey project equipments for you.

Don't hesitate to contact us if you show interesting on our beverage production machine and our RELIABLE company.

Production Process



FAQ

Q1:Are you manufacturer or trading company ?

A1: We are industrial manufacturer, which locates in Zhangjiagang city over 10years , and begin to export our machines and provides oversea installation services since 2010 .

Q2:How can we get your suitable machines / production line ?

1. Let me know what kind of products will you produce ?

2. Let me knw what is the capacity(per hour) you want ?

3. Let me know what kind of package , plastic bottle ,glass bottle : volume ,height ,neck diameter ,diameter of bottle or other please inform us of details



Q3: Where is your factory?

A3: Our Factory is located in Zhangjiagang City, it is very near to Shanghai and Wuxi (airplame and train both available). If you arrive at Shanghai or Wuxi, we can pick you up to visit our factory.

Q4: Do you have any technical supports with your Beverage Filling Machines?

A4: Yes,  We have a professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.

Q5: What kind certificates you already passed ?

We already passed CE , SGS , CIQ , ISO etc.

Q6: Do you support Alibaba Trade Assurance Order ?

Yes , you could sponsor and place Trade Assuracne Order to get guarantee from ALIBABA guarantee .



Our Services

The sample service

1.we can send you the video of the running machine.
2.you are always welcome to come to visit our factory, and you may see the operation of the machines here . We will make the arrangement to pick you up when you come .
3.If we get the permission of the customer who has brought the machines from us ,we can tell you their contact information, you can go to visit their factory.

Customized service
1.we can design the machines according your requirements(material ,power,filling type,the kinds of the bottles, and so on).
2.at the same time we will give you our professional suggestion .

After-sales service
1.we will provide the bill of load on time to make sure you can get the machine quickly
2.when you finish the Preparation conditions ,our engineer will go to your factory for the installation, testing and also training .
3.we provide one year warranty with spare parts free.
